Model	V-max (Vdc)	I-max (A)	I-hold (A)	I-trip (A)	Agency Approval	Spec

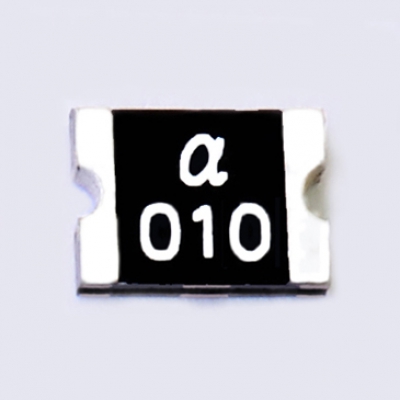

mSMD010	30	100	0.1	0.3	UL/RoHS
mSMD014	60	100	0.14	0.34	RoHS
mSMD020	30	100	0.2	0.4	RoHS
mSMD050	15	100	0.5	1	UL/RoHS
mSMD075	13.2	40	0.75	1.5	UL/RoHS
mSMD075-16V	16	100	0.75	1.5	RoHS
mSMD110	8	100	1.1	2.2	UL/RoHS
mSMD110-16V	16	100	1.1	2.2	RoHS
mSMD125	16	100	1.25	2.5	RoHS
mSMD150	8	100	1.5	3	UL/RoHS
mSMD150-12V	12	100	1.5	3	RoHS
mSMD150-16V	16	100	1.5	3	RoHS
mSMD160	8	100	1.6	2.8	UL/RoHS
mSMD200	8	100	2	4	UL/RoHS
mSMD260	8	100	2.6	5	UL/TUV/RoHS
mSMD300	8	100	3	5	RoHS
mSMD350	6.0	100	3.50	6.00	RoHS
mSMD050-33V	33	100	0.50	1.00	UL/RoHS
mSMD075-24V	24	100	0.75	1.50	UL/RoHS

Ihold = Hold Current:maximum current device will sustain for 4 hours without tripping in 25°C still air.

ItRip = Trip Current:minimum current at which the device will trip in 25°C still air.

V-max = Maximum voltage device can withstand without damage at rated current(I-max).

I-max = Maximum fault current device can withstand without damage at rated voltage(V-max).
