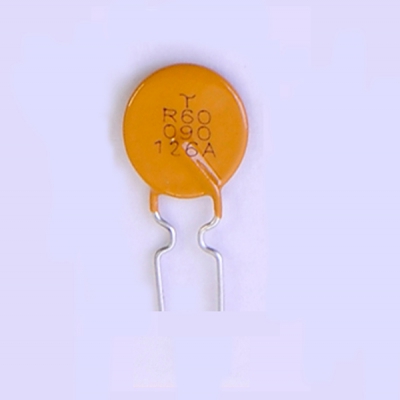

自恢復保險絲

Model	V-max (Vdc)	I-max (A)	I-hold (A)	I-trip (A)	Agency Approval	Spec
C250-030	60/250	1.0	0.03	0.06	RoHS
C250-040	60/250	1.0	0.04	0.08	RoHS
C250-050	60/250	1.0	0.05	0.10	RoHS
C250-060	60/250	3.0	0.06	0.12	RoHS
C250-080	60/250	3.0	0.080	0.160	UL/RoHS
C250-090	60/250	3.0	0.090	0.180	UL/RoHS
C250-110	60/250	3.0	0.110	0.220	UL/RoHS
C250-120	60/250	3.0	0.120	0.240	UL/RoHS
C250-145	60/250	3.0	0.145	0.290	UL/RoHS
C250-180	60/250	10	0.180	0.540	UL/RoHS
C250-200	60/250	10	0.200	0.400	RoHS
C250-400	60/250	10	0.400	0.800	RoHS
C250-600	60/250	10	0.600	1.200	RoHS
C250-800	60/250	10	0.800	1.600	RoHS
C250-1000	60/250	10	1.000	2.000	RoHS
C250-1500	60/250	10	1.500	3.000	RoHS
C250-2000	60/250	10	2.000	4.000	RoHS

Ihold = Hold Current:maximum current device will sustain for 4 hours without tripping in 25°C still air.

ItRip = Trip Current:minimum current at which the device will trip in 25°C still air.

V-max = Maximum voltage device can withstand without damage at rated current(I-max).

I-max = Maximum fault current device can withstand without damage at rated voltage(V-max).
